AI815 3BSE052604R1 ABB High-density analog input module AC 800M System 800xA

Brand Name : ABB

Model Number : AI815

Certification : COO & COC

Place of Origin : Germany

MOQ : 1 pc

Price : $180

Payment Terms : T/T,paypal,alipay

Supply Ability : 99+

Delivery Time : 3-5 days

Packaging Details : Brand new and original

Shipping Weight : 0.2 KG

Packing Size : 10.2 x 11.1 x 7.2 cm

Condition : Brand new and original

Warranty : One year

Trade Terms : EXW, DAP, FOB, CIF

Express Delivery : DHL, FedEx, UPS

Contact Now

AI815 3BSE052604R1 ABB High-density analog input module AC 800M System 800xA

The ABB AI815 is a high-density 16-channel analog input module in the AC 800M distributed control system, specifically designed for the acquisition of 4–20 mA signals in industrial process automation. This module features tool-free spring terminal connection technology, significantly enhancing on-site wiring efficiency and reliability. It natively supports transparent HART digital communication, allowing diagnostic and configuration data from smart transmitters to be directly transmitted to the upper-level system (such as System 800xA Asset Optimizer).

Core features

High channel density:
16 independent analog input channels
Supports 4–20 mA current signals (active/passive compatible)
Input impedance: < 250 Ω (ensuring no impact on loop power supply)
HART transparent transmission:
Each channel supports HART 5/6/7 protocol digital signal superposition
No additional hardware required, HART data directly passes to the controller
Compatible with mainstream HART transmitters (pressure, temperature, flow, etc.)

Technical parameters

Model Number	AI815
Manufacturer	ABB
Product Type	Analog Input Module
Compatible Controller Platform	ABB AC 800M (S800 I/O System)
Number of Input Channels	4
Mounting	DIN rail (EN 50022 compliant)
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Storage Temperature	–40°C to +85°C (–40°F to +185°F)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W × H × D)	45 mm × 180 mm × 110 mm (1.77 in × 7.09 in × 4.33 in)
Weight	Approximately 450 g (1.0 lb)
Certifications & Compliance	CE marked, UL listed, RoHS compliant; meets IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (emission) standards
ABB Order Code / Part Number	3BSE020815R1

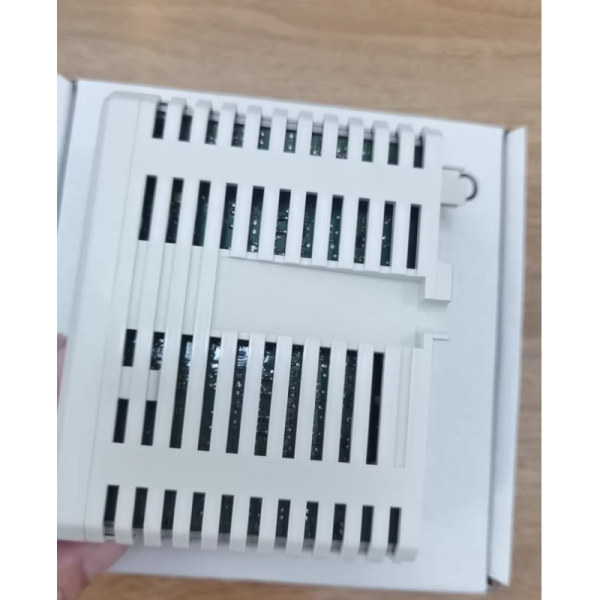

Product Images
