EOCRSP10RM Schneider Electric EOCR-SP Series Economic Plug-in Motor Protector AC220-240V
The EOCRSP10RM is an economical plug-in motor protector from Schneider Electric (formerly Samhwa of South Korea), part of the EOCR-SP series. It provides reliable protection for small to medium-sized AC motors with current ranges of 1-12A. This product features a compact, modular design that allows for direct plug-in installation with contactors, eliminating the need for additional wiring and greatly simplifying installation and maintenance. It is an ideal choice for industrial protection solutions seeking high cost-effectiveness.
Product Features and Advantages
Built-in MCU Microprocessor: Utilizes digital data processing, replacing traditional metal deformation components for more accurate and sensitive measurements.
Convenient Plug-in Installation: Can be directly plugged into various imported/domestic contactors (MC) without additional wiring, saving cabinet space and installation time.
Dual LED Status Indicators:
Red LED: Real-time operating current detection indication
Red/Green LED: Operating status and fault cause indication for easy on-site troubleshooting.
Multiple Reset Methods: Supports manual instant reset and electric remote reset to adapt to different application scenarios.
Core Features
| Core Functions | Overcurrent, Phase Loss, Locked Rotor Protection |
| Current Setting Range | 1~12A |
| Control Power Supply | R-type AC 90-260V, 50/60Hz |
| Time Setting | O-Time (Overcurrent Trip Time) Adjustable from 0.5 to 15 seconds |
| Output Contacts | 1 single-pole single-throw (1-SPST) contact, capacity AC250V/3A (resistive) |
| Reset Method | Manual instant reset / Electric remote reset |
| Status Indicator | Red/Green dual-color LED indicator |
| Installation Method | Direct-plug installation with contactor |
| Operating Environment | Temperature -20℃ ~ +60℃; Humidity 30~85% RH (non-condensing) |

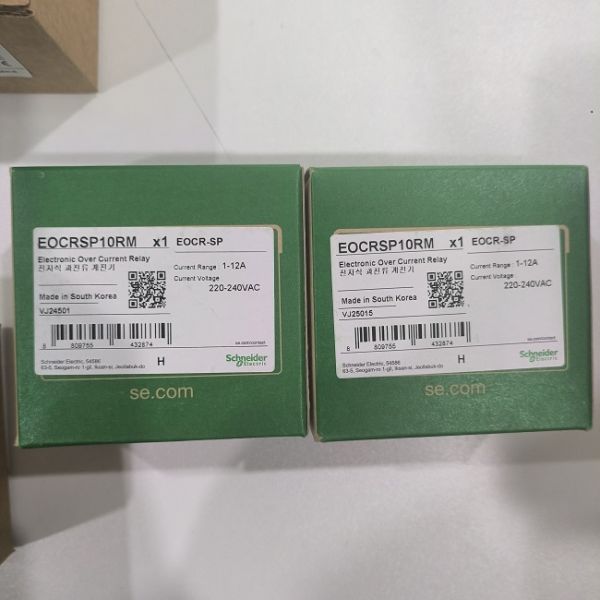

Product details pictures
